ASTM B338 Titanium Pipe Gr1 Gr2 Gr5 Seamless Titanium Tube

Lugar de origem	China
Marca	csty
Certificação	ISO9001
Número do modelo	csty
Quantidade de ordem mínima	1kg
Preço	USD20-40per kg
Detalhes da embalagem	Caso de madeira
Tempo de entrega	7days
Termos de pagamento	L/C, T/T
Habilidade da fonte	de 1 toneladas pelo mês

Contacte-me para amostras grátis e vales.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

Detalhes do produto

Material	titânio	Comprimento	≤6000mm
Aplicação	Industrial, médico, condensadores, etc.	Dentro do diâmetro	2.5~150mm
Diâmetro exterior	3-508mm	Wall Thickness	0.1-30mm
Destacar	Industrial Seamless Titanium Tube , ASTM B338 Seamless Titanium Tube , Gr2 Titanium Round Tube

Deixe um recado

Descrição de produto

Gr2 Gr7 Titanium Pipes GR9 titanium tube 35mm titanium tube

Product Paramenters

Name	Titanium Tube & Pipe
Standard	ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928
Material Grade	Gr1, Gr2, Gr4, Gr7, Gr9, Gr11, Gr12, etc
Size	Length: 50-6000mm or according to customer requirements
	Outer diameter: 3-300mm or according to customer requirements
	Wall thickness: 0.2-5.5mm or according to customer requirements
Section shape	Round / Square
Tolerance	a) Outer Diameter: +/- 0.01mm b) Thickness: +/- 0.01mm c) Length: +/- 0.1mm
Surface	Pickling, annealing, polishing, bright.
Feature	1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity
Test	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT

Gr2 Gr7 Titanium Pipes GR9 titanium tube 35mm titanium tube

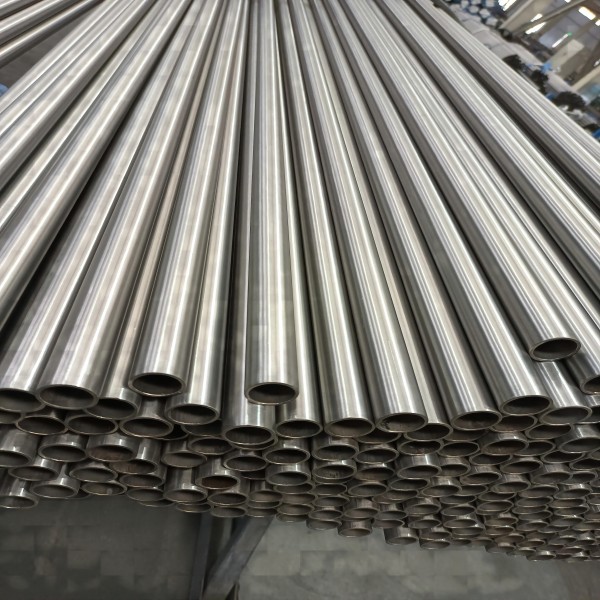

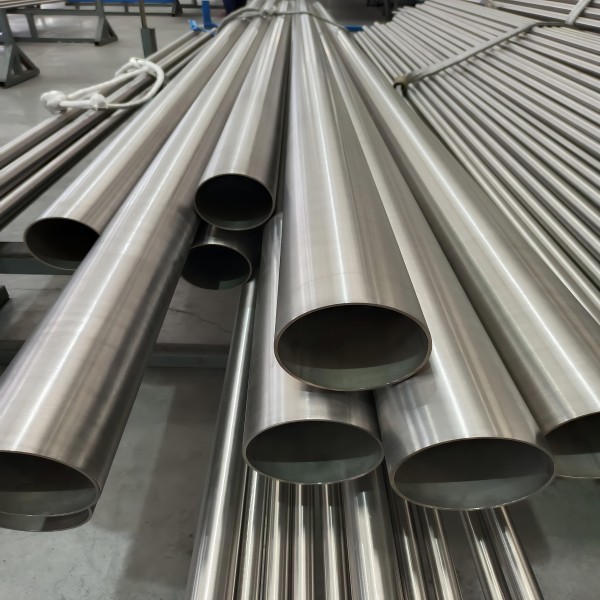

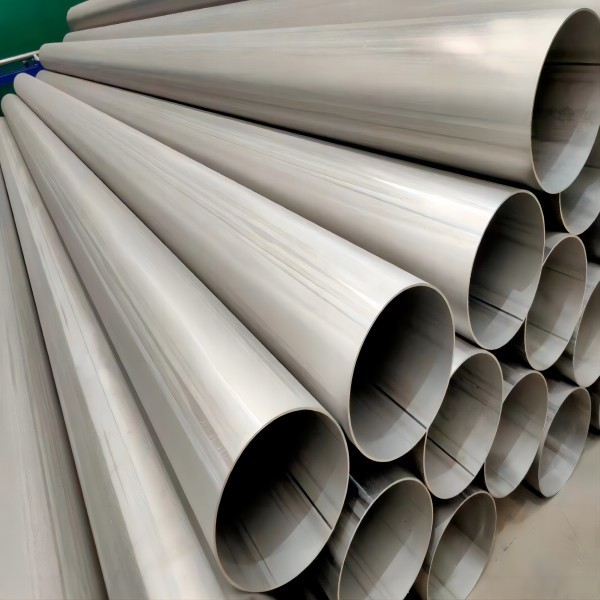

Titanium Tubes / Titanium Pipes.

The titanium tube is light in weight, high in strength and superior in mechanical properties. It is widely used in heat exchange equipment, such as tube and tube heat exchangers, coil heat exchangers, serpentine tube heat exchangers, condensers, evaporators and transportation pipelines. Many nuclear power industries use titanium tubes as standard tubes for their units.
